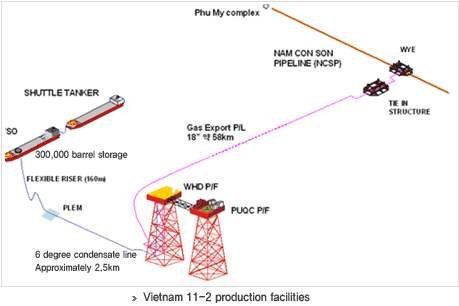

Production facility formation |
|
 |
|
| Component |
Function |

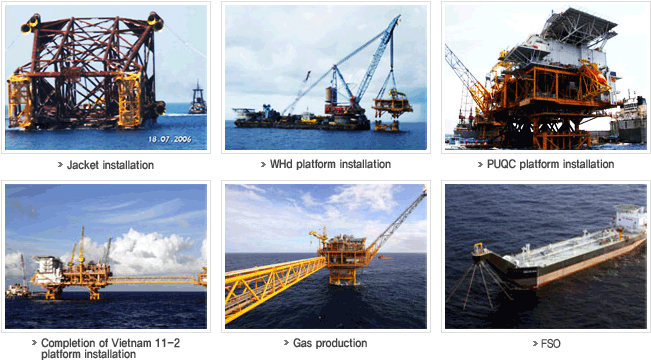

| Well Head Platform |
Structure to drill and produce hydrocarbons from gas reservoirs connected to gas fields on the seabed |
| PUQC Platform |
Structure loaded with equipment to separate fluids extracted from the reservoir into gas and condensate to suit specifications |
| Gas Export Pipeline |
Pipeline installed on the seabed to transport gas to processing facilities |
| FSO (Floating Storage & Offloading) |
Equipment to store condensate produced on the production platform and supply it to oil tankers |
|
|
|

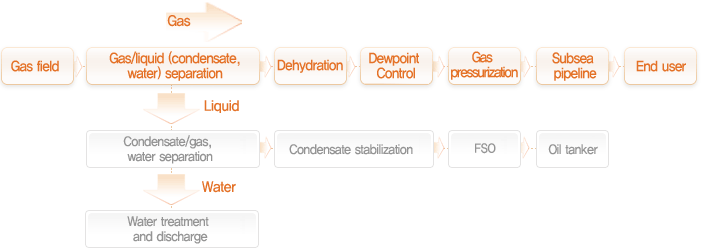

Summary of gas processing facilities process |
|
 |
|
| |
Function |
| Gas/liquid separation |
Separation of gas/liquid (condensate, water) from fluid produced in the reservoir |
| Dehydration |
Removal of water from separated gas |
| Dewpoint control |
Removal of heavy hydrocarbons from gas (C5↑) |
| Gas pressurization |
Gas pressurization to transport gas via subsea pipelines |
| Condensate/water separation |
Separation of condensate and water |
| Condensate stabilization |
Maximum separation of gas components from condensate and stabilization process |
| FSO |
Storage and provision to tankers of stabilized condensate |
|
|
|
Main processes |
|
 |
|
